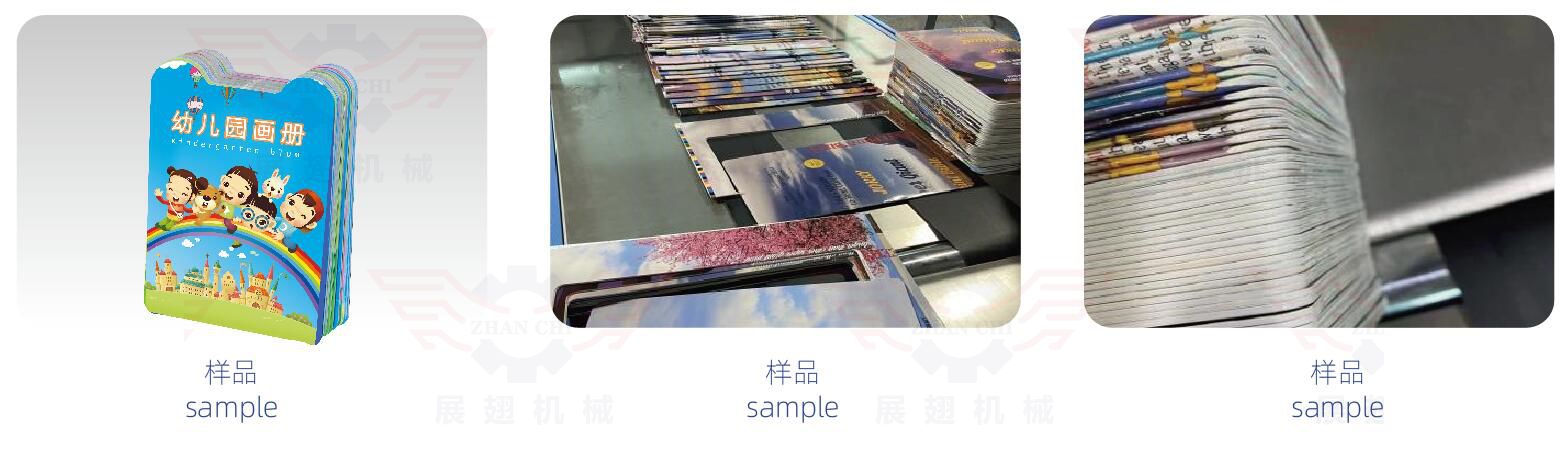

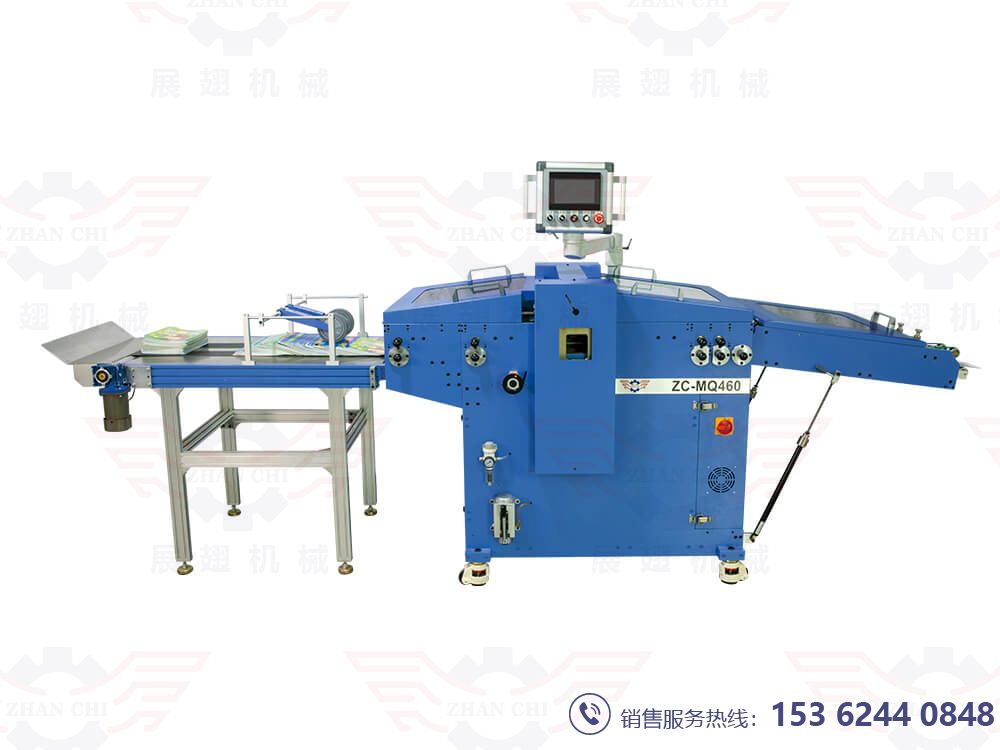

MQ460该机根据折页机、骑订、车线后段工序处理开发出的新款自动模切机,进纸部分无需输送装置,可联接任何机器出纸位置,实现联动模切一次完成,省掉后续加工工序。可模切异形说明书、儿童卡书等。 动力采用进口三菱3.5KW伺服系统配合光电开关PLC程序实现联动功能。
产品特点:联线完成异形模切等工序,节省人工成本,大幅提高生产效率。
技术要点:机身全部精密加工,采用3.5KG伺服电机+光电等PLC系统控制,实现智能化生产。
专利证书号:ZL 2021 2 0221052.7

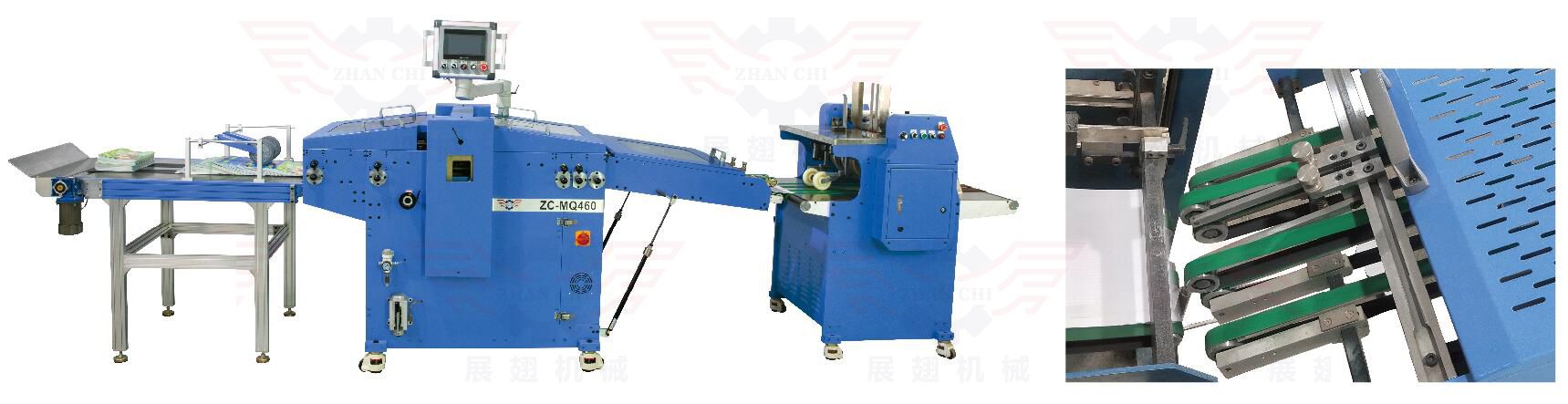

特点一:可联线折页机、骑订机、对折机、发卡机等。完成书本和产品说明书的模切
Feature One: Can connect line folding machine, riding machine, folding machine, card machine, etc. Complete the die-cutting of the
books and product instructions

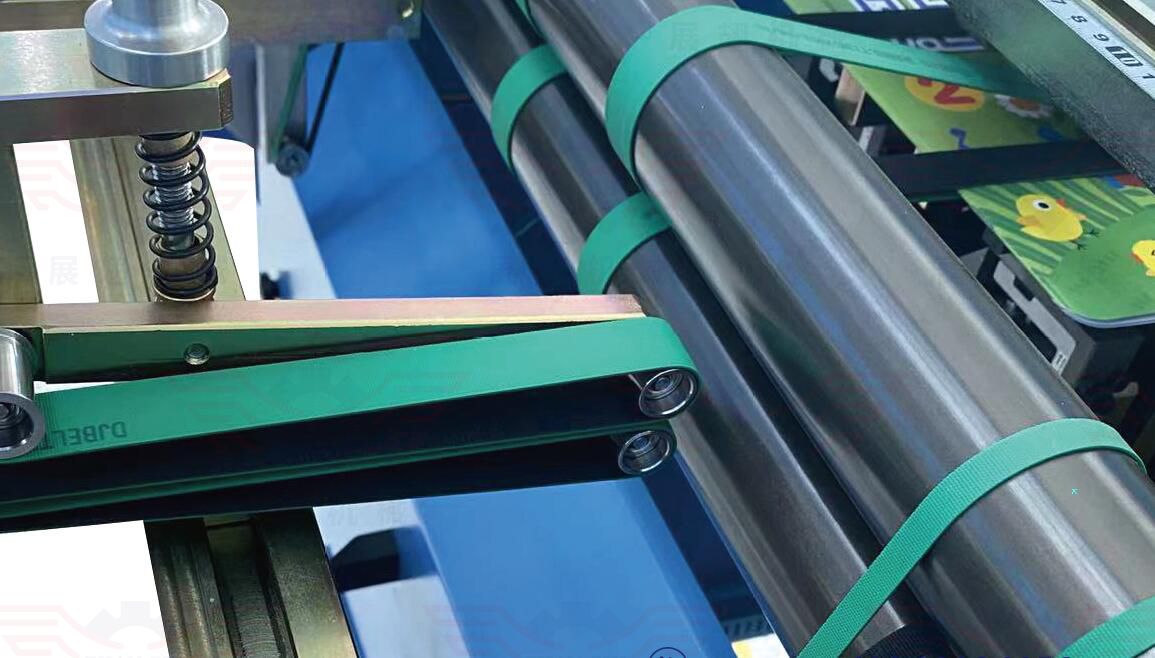

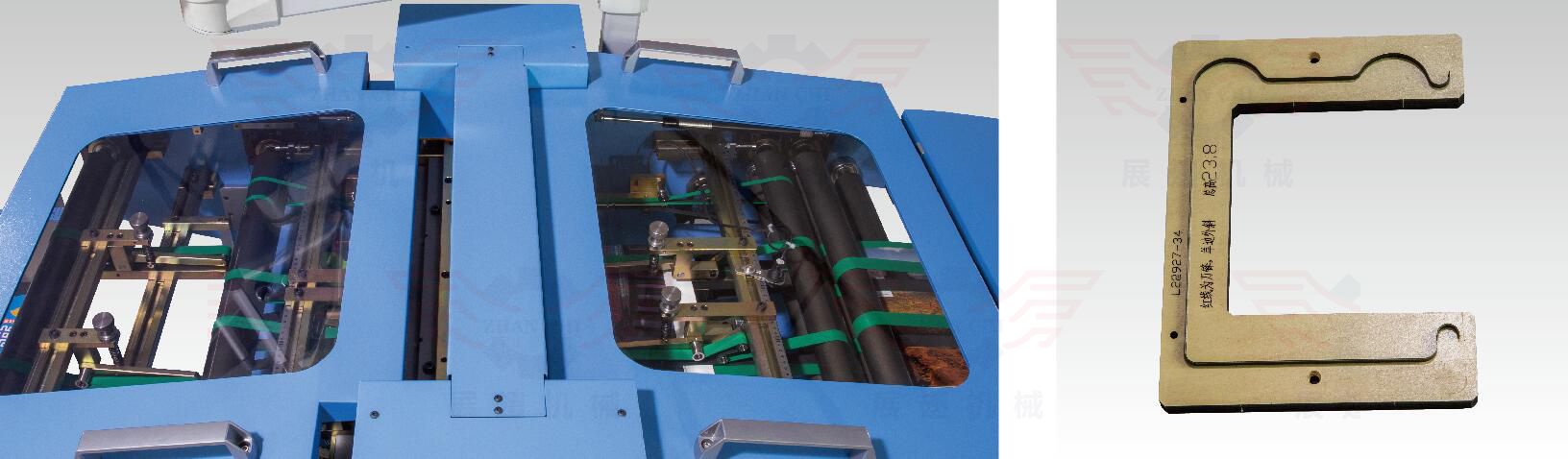

![]() | 特点二:部分产品可自动分离排废功能 Feature Two:Automatic wastedischarge 特点三:换版调尺寸简单快捷,四边气动靠位,保证模切位置精准 Feature Three: The Size of the version change is simple and fast, the four sides of the pneumatic position, to ensure the accurate punching and die-cutting position |
特点四:采用3.5KW伺服系统配合PLC程序实现联动功能
Features Four: Use 3.5KW servo system with PLC program to achieve linkage function
产品参数 Product parameters
机器尺寸 | Machine Size | 3800*1000*1680(mm) |
电 源 | Power Supply | AC380V 3+2 |
功 率 | Power | 3.5KW |
重 量 | Net Weight | 980KG |
生产尺寸 | Diameter | W100-460mm/ L50-250mm |
生产厚度 | Thickness | 0.5-3MM |
最快速度 | Fastest Speed | 7000pcs/H |
