ZC-DK350该机根据折页机后段工序处理开发出的新款自动打孔模切机,进纸部分无需输送装置,可联接任何折页机出纸位置,实现联动折页打孔模切一次完成,省掉后续加工工序。 8张16张折页本帖可以达到4500-7500帖/1小时。更小纸张速度可以实现更快冲压模切。可实现书背线圈孔和书角半圆邮票孔的一次完成,可模切书边书梯(挖月)。也可联线其他机器完成需要冲孔和模切的工序。 动力采用进口三菱3.5KW伺服系统配合光电开关PLC程序实现联动功能。
产品特点:
联线折页机完成冲孔模切等工序,节省人工成本,大幅提高生产效率。
技术要点:
机身全部精密加工,采用3.5KG伺服电机+光电等PLC系统控制,实现智能化生产。
专利证书号:ZL 2021 2 0221052.7

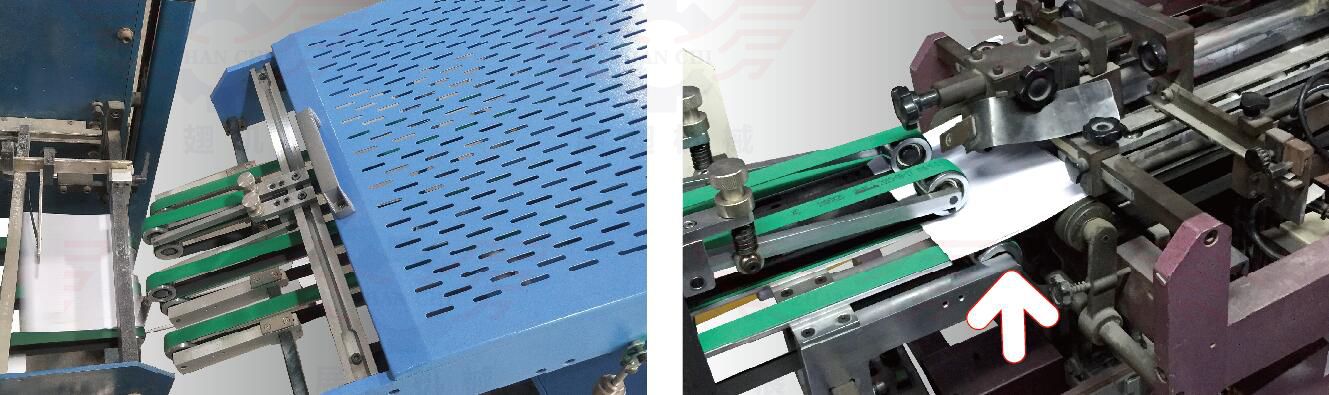

特点一:可联线折页机、骑订机、对折机、发卡机等完成冲孔和模切书梯
Feature One: Can be connected to any machine, complete punching and die cutting book edge
特点二:换版调尺寸简单快捷,四边气动靠位,保证冲孔和模切位置精准
Feature Two: The Size of the version change is simple and fast, the four sides of the pneumatic position, to ensure the accurate punching and die-cutting position

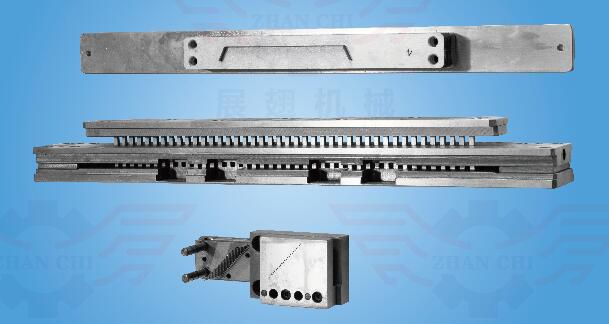

特点三:可同时完成线圈孔和邮票孔,可装刀模完成模切
Features Three: The YO hole and the book corner hole can be completed at the same time, Changing the knife die can complete the die cutting book edge

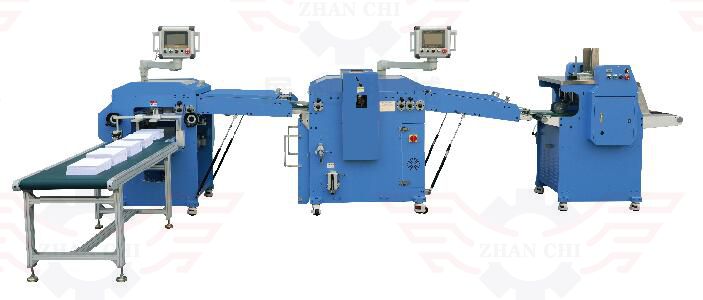

特点四:采用3.5KW伺服系统配合PLC程序实现联动功能 Feature Four: Use 3.5KW servo system with PLC program to achieve linkage function | (右一)多功能发纸机+(中)联线冲孔机+(左)收纸机 (Right one) Multifunctional feeder machine+ (middle)Online Punching Machine with Paper Folding Machine+ (left)Paper receiving machine |
产品参数 Product parameters
机器尺寸 | Machine Size | 2580*870*1450(mm) |
电 源 | Power Supply | AC380V |
功 率 | Power | 3.5KW |
重 量 | Net Weight | 820KG |
生产尺寸 | Diameter | A6-A4 |
生产厚度 | Thickness | 0.5-4MM |
最快速度 | Fastest Speed | 7500pcs/H |
