ZC-DK350该机根据折页机后段工序处理开发出的新款自动打孔模切机,进纸部分无需输送装置,直接结合所有折页机出纸位置,实现联动折页打孔模切一次完成,省掉后续再次工序。    定为准,效率高,普通A4纸张8张16张折页本叠可以达到4500-6000叠/1小时。更小纸张速度可以实现更快冲压模切。可实现书背线圈孔和书角半圆邮票孔的一次完成,可2台联动实现后续书边书梯的刀模扎边与其他工序完成。 动力采用3KW伺服系统配合光电开关PLC程序实现联动功能。

ZC-DK350 machine is a new type of automatic punching die-cutting machine developed according to the processing of the back process of folding machine. The paper feeding part does not need conveying device, and directly combines with the position of all folding machines to realize the one-time completion of the linkage punching die-cutting of folding machine, thus eliminating the subsequent re-process.Set to be accurate, high efficiency, ordinary A4 paper 8 sheets 16 folded folders can reach 4500-6000 folds per hour. Smaller paper speed allows faster stamping die cutting. It can complete the coil hole and the corner half-circle stamp hole at one time, and can realize the knife die edge binding and other processes of the follow-up bookside ladder by two sets of linkage. The power adopts 3KW servo system and photoelectric switch PLC program to realize linkage function


机器尺寸 Machine size

2580x870x14500(mm)

电    源 Power SupplyAC380V
功    率 Power3.5KW
重    量 Net Weight950KG
生产尺寸 Diameter

120mm---500mm宽幅长度100mm-350mm

书本厚度0.5mm-4mm

生产速度 Production speed3500-6000次/分钟

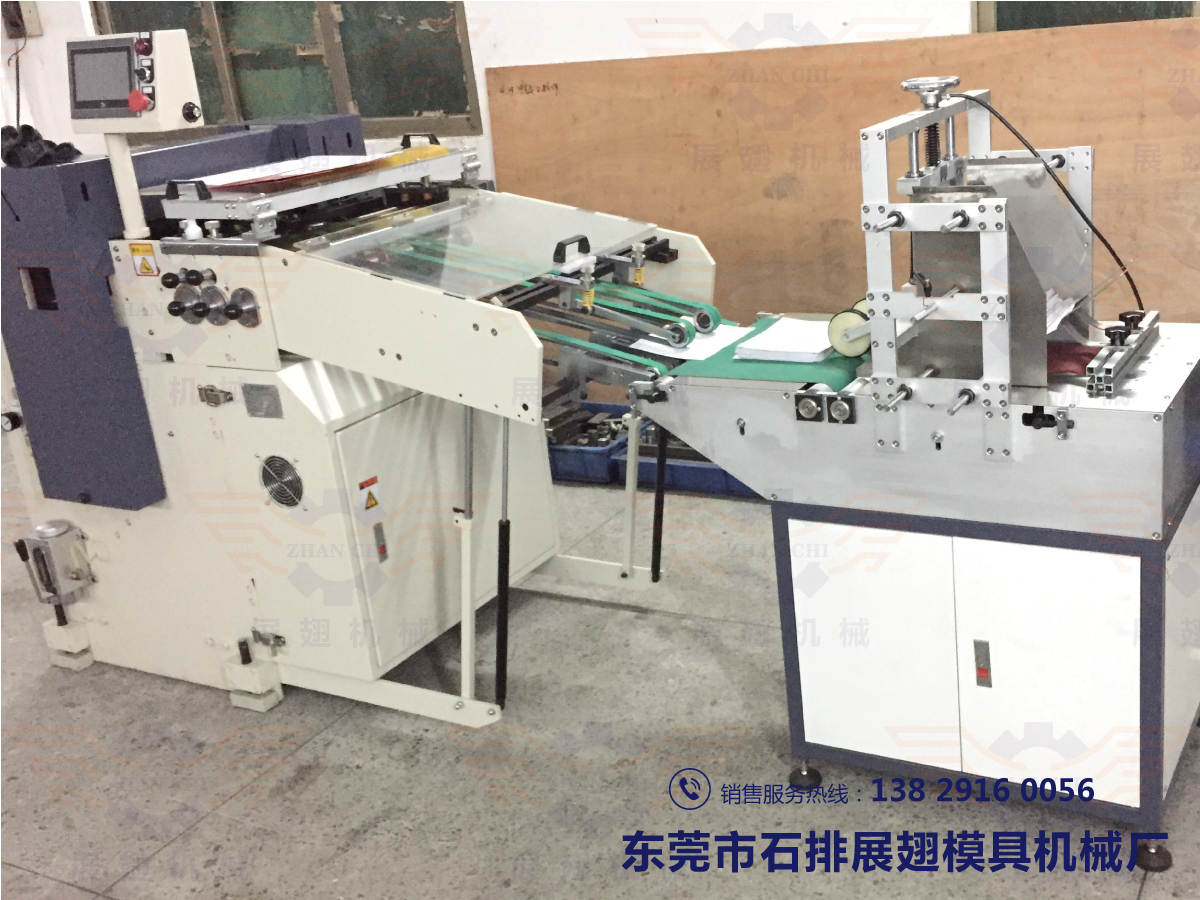

进料接入各种输送设备,各种皮壳,硬纸板,胶片...均可完成自动送料冲孔模切工序。

Feed into all kinds of conveying equipment, all kinds of shells, cardboard, film... The automatic feeding and punching die cutting process can be completed.

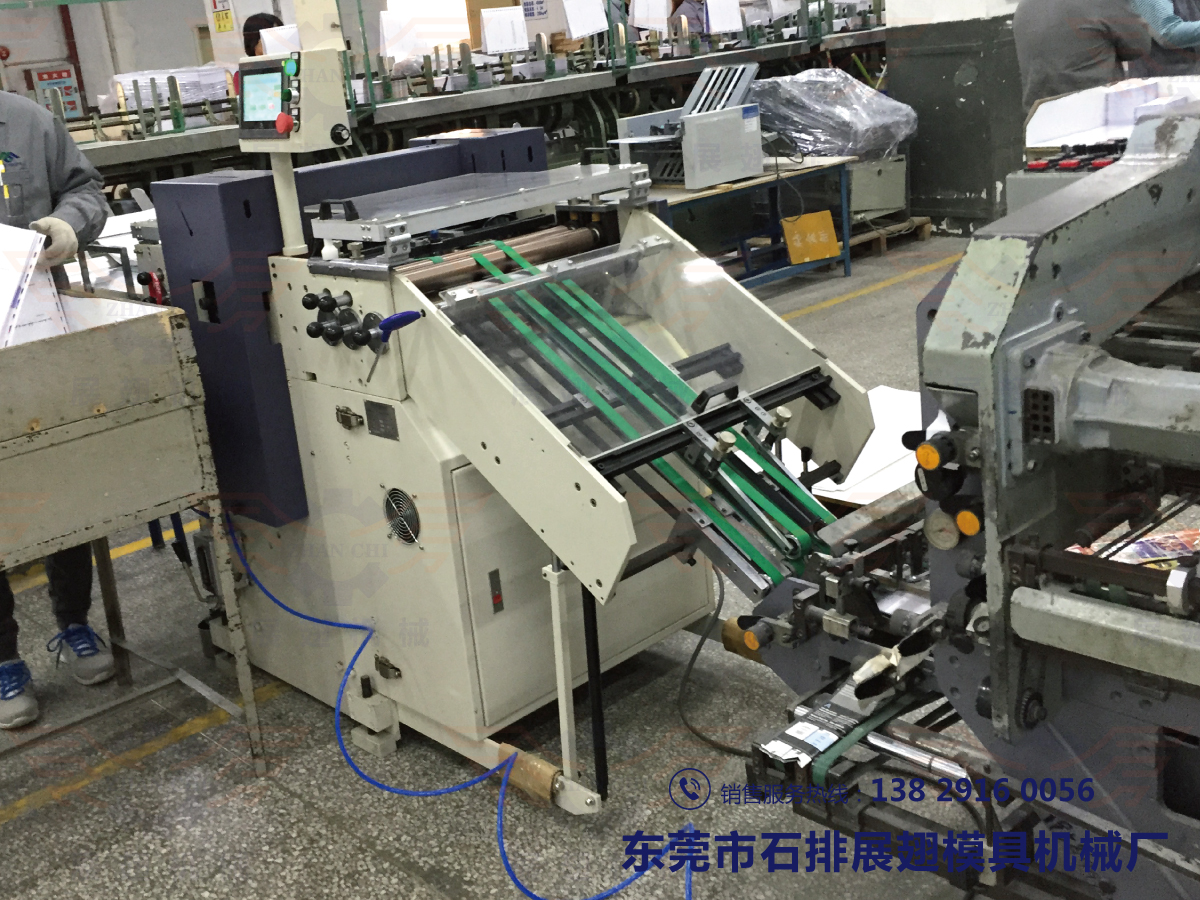

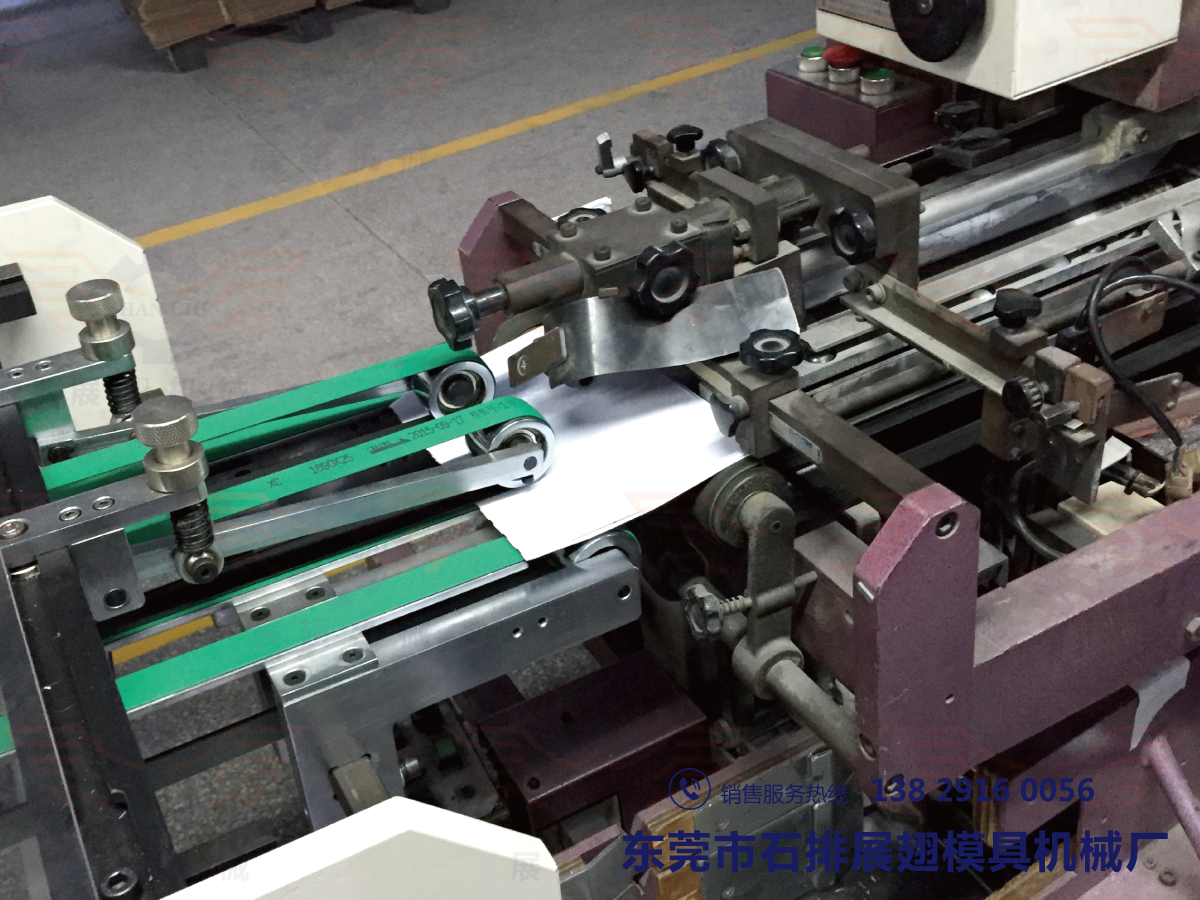

接入折页机,一次性完成折页打孔模切工序

Access folding machine, complete folding punching and die cutting process at one time

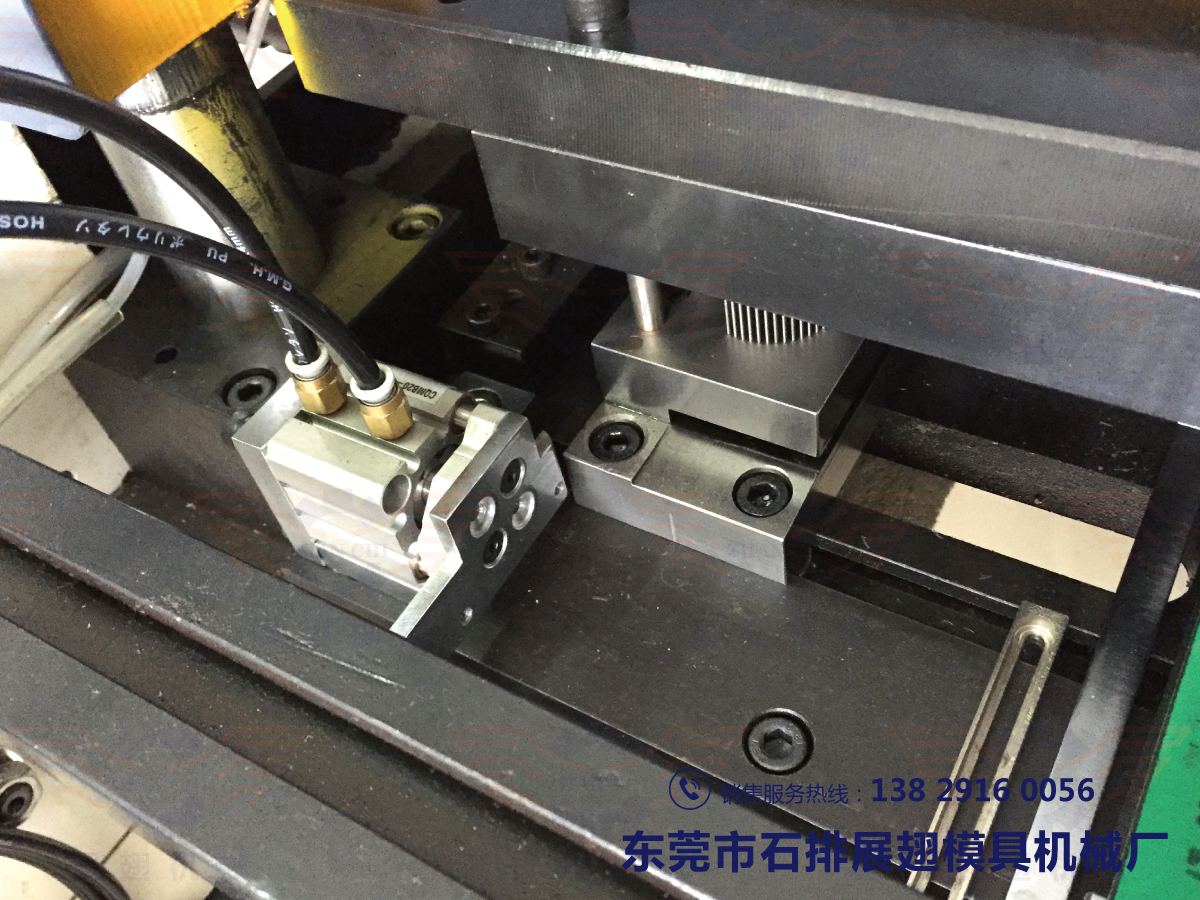

附加小针孔模具,可同时完成线圈孔与邮票孔(易撕孔线)的冲孔工序

Adding small pinhole die can complete the punching process of coil hole and stamp hole (tear hole line) at the same time.


设备制作成品

设备运行加工中
