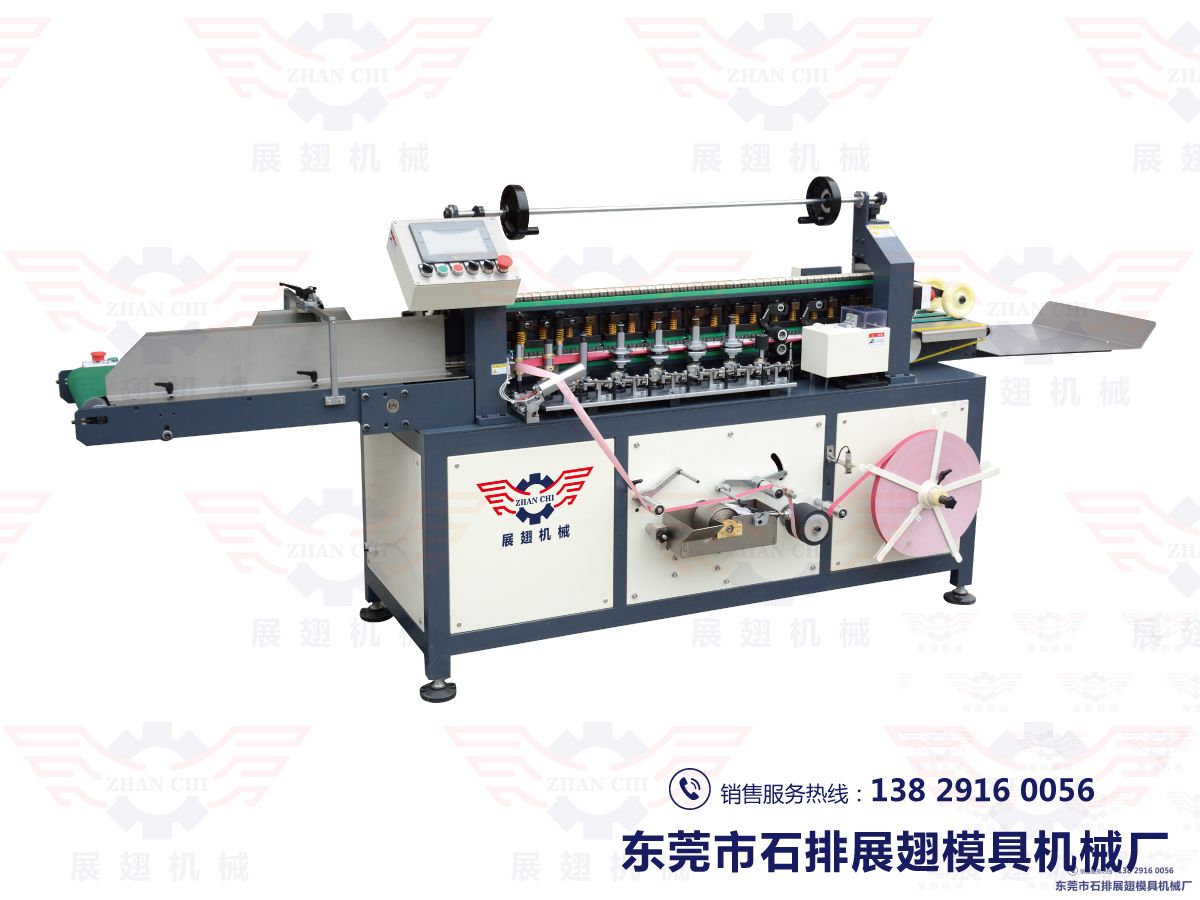

图片展示ZC-B500包书背机

ZC-B500是我厂新设计制造的书本包背糊书头,上裹背条,软抄本,便条,本充皮本,各种票据糊头方形书背圆形书背的背条纸涂胶覆盖胶装作业。采用特殊双轨橡胶垫链条配合进口高分子高耐磨链轨引导输送方式,具有无噪音,摩擦小,输送平稳特点。PLC人机界面监控与操作自动包背条上胶水,电眼物料进料监控,自动无料报警,高速离合刹车切刀精准快速。包背条自动输送结构,保证窄而薄的背条纸顺利涂胶上书。自动手动切换,保证调试方便快捷,上胶水包背条可开关控制加热,以适合不同环境和速度状态下平稳使用。

ZC-B500 is a newly designed and manufactured backpack with backpack, backpack, soft copy, note, cover sheet, all kinds of bills, square backpack, round backpack backpack, backpack glue covering glue binding operation. The special double-track rubber cushion chain with imported high polymer wear-resistant chain rail guide conveying mode has the characteristics of no noise, low friction and smooth conveying. PLC man-machine interface monitoring and operation automatic backpack glue, electric eye material feeding monitoring, automatic unexpected alarm, high-speed clutch brake cutter accurate and fast. The automatic conveying structure of the backing strip ensures the smooth gluing of the narrow and thin backing strip. Automatic manual switching ensures easy and fast debugging. The backbar of glue pack can be switched to control heating, so that it can be used smoothly in different environments and speeds.


机器尺寸 Machine size

3400x880x1300(mm)

电    源 Power SupplyAC380V
功    率 Power

2.0KW

重    量  Net Weight700KG
生产尺寸 Diameter

120mm~400mm  宽幅长度 100mm-800m

 书本厚度3mm~30mm

生产速度 Production speed5-20m/分钟

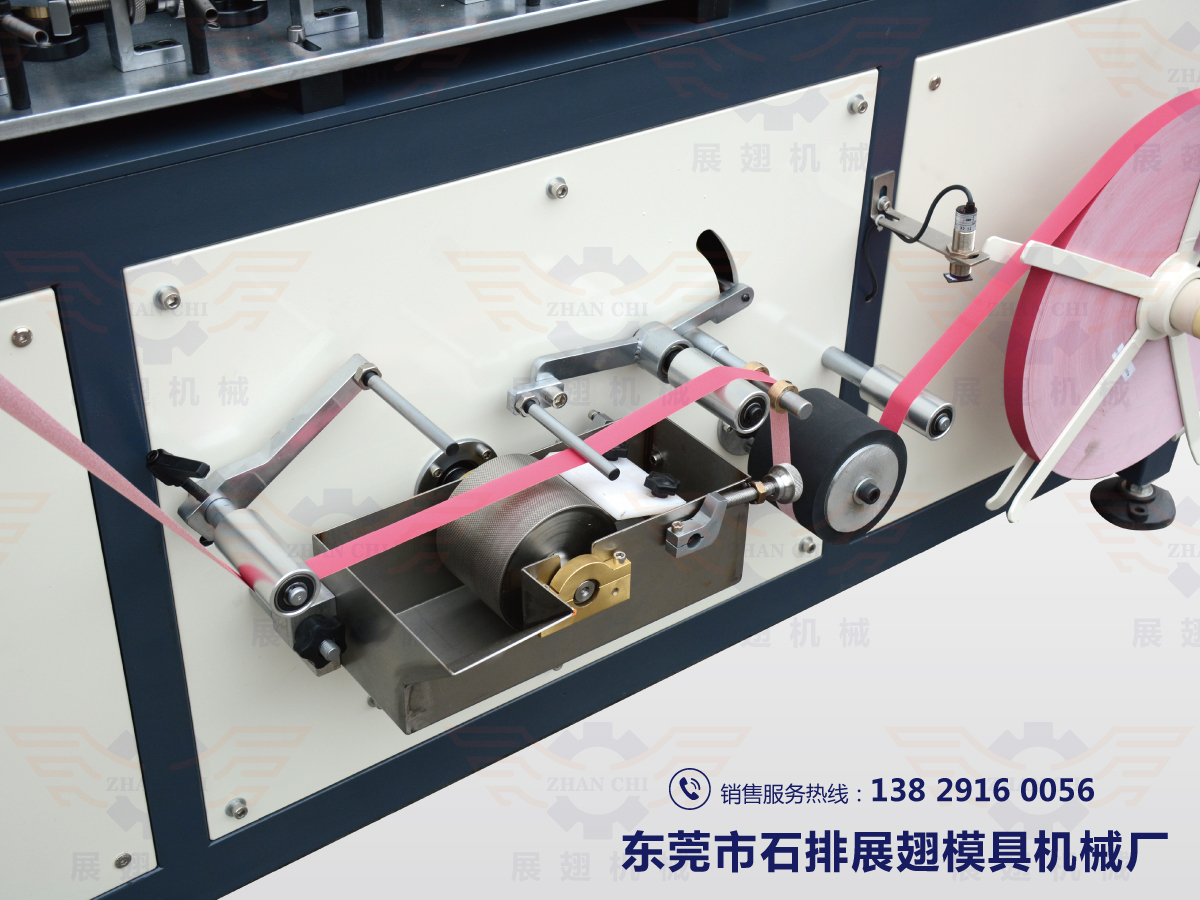

手自动上胶,电眼跟踪物料,橡胶送料滚轮,保证厚薄背条纸平稳输送。

Hand automatic gluing, electro-eye tracking material, rubber feeding roller, ensure smooth conveying of thick and thin backing paper.

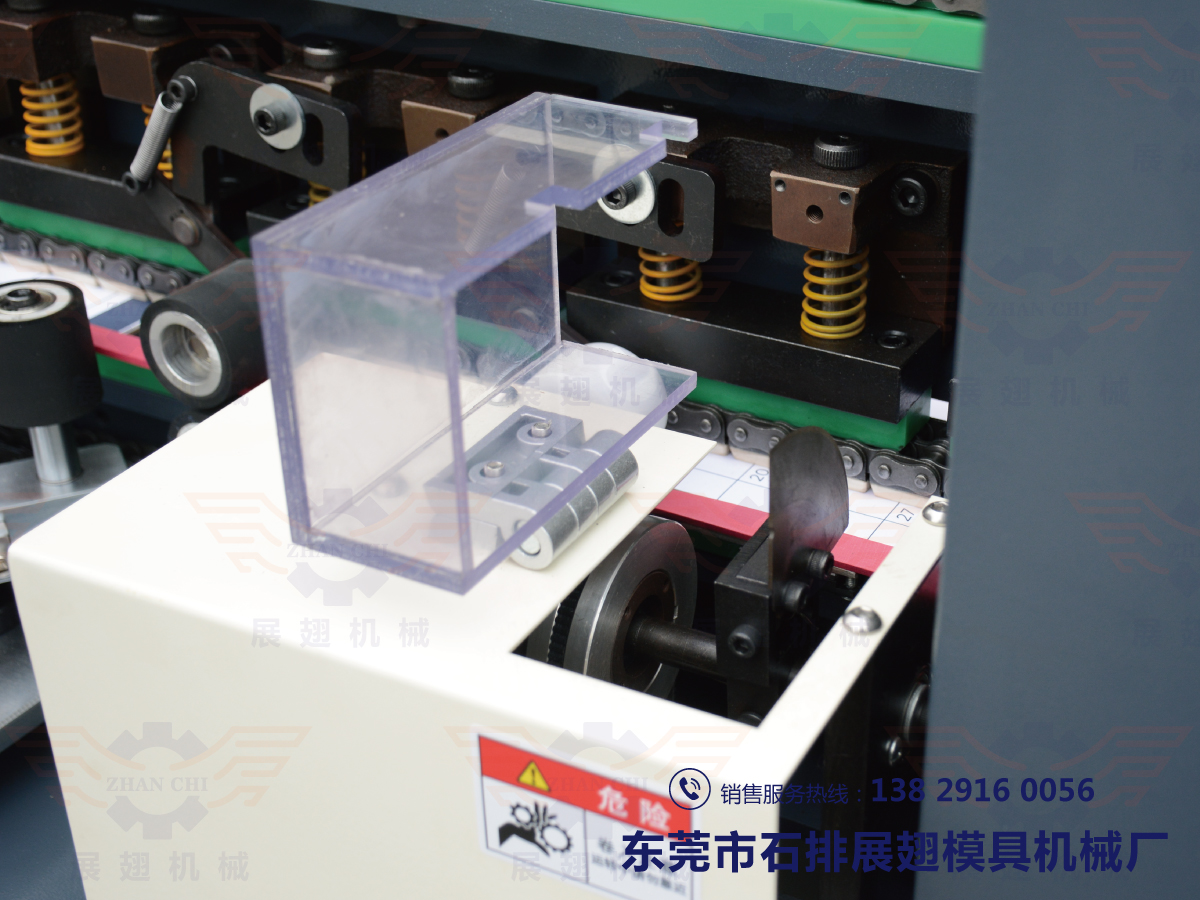

电机驱动刹车离合配合机械动作完成切料。

Motor driven brake clutch cooperates with mechanical action to complete cutting.

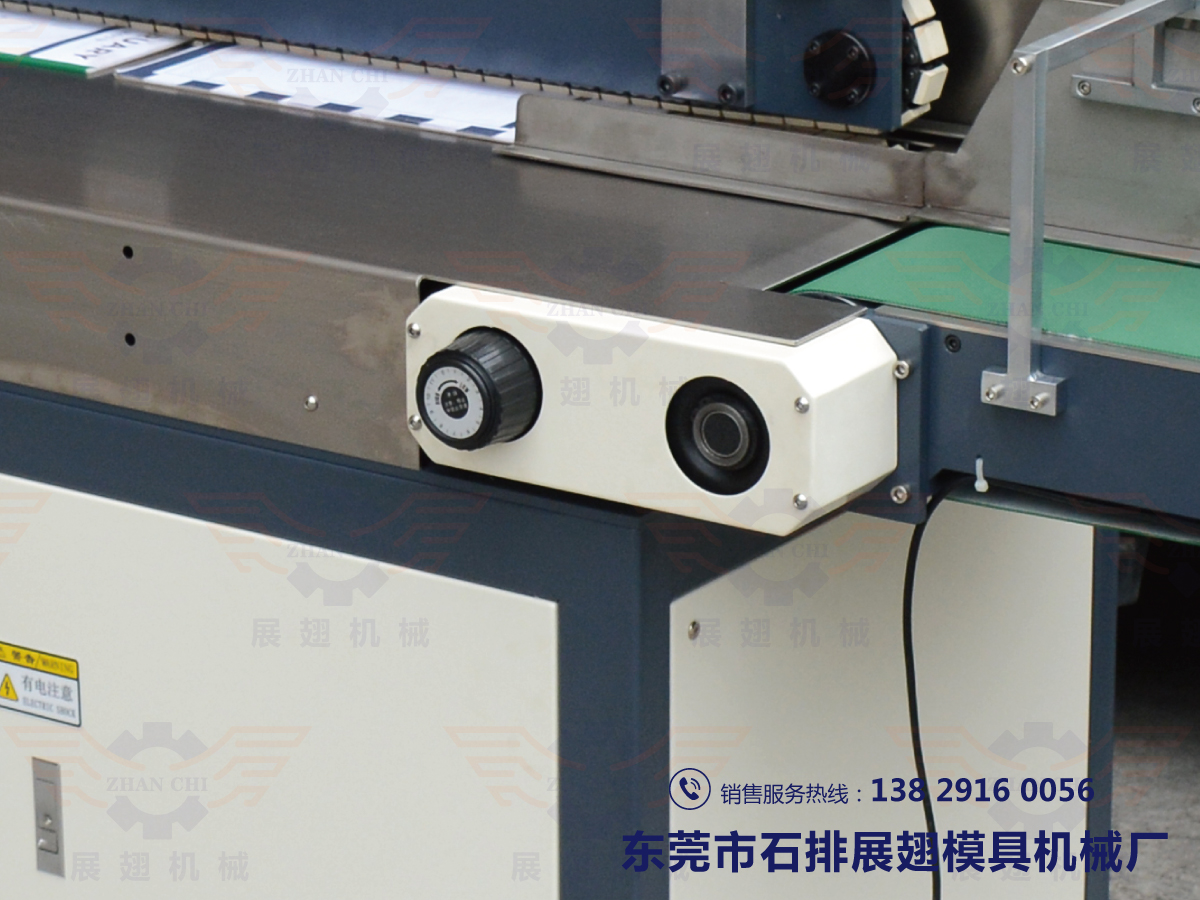

皮带式无级变速器任意调节本册间距大小。

Belt type CVT can adjust the spacing of this volume at will.

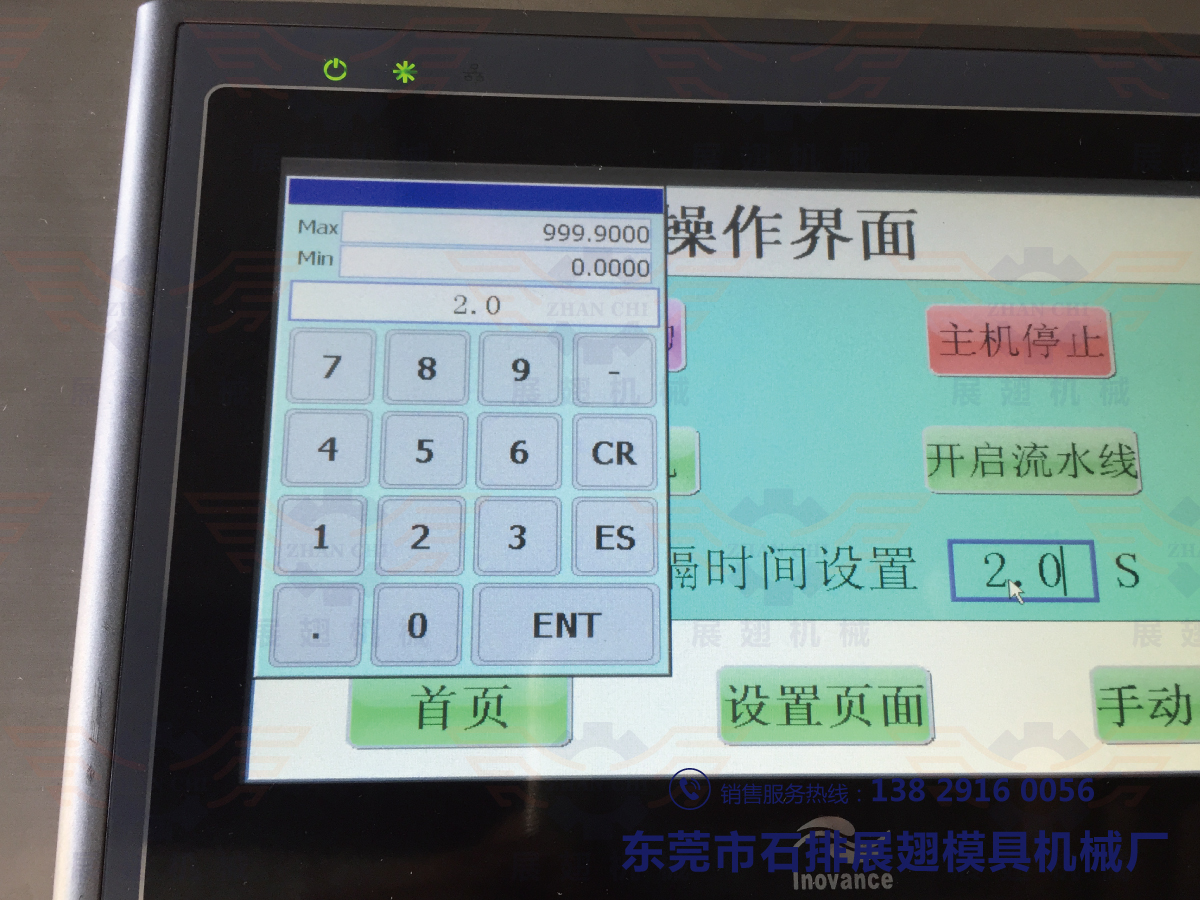

PLC程序控制,人机界面操作,方便简洁。

PLC program control, man-machine interface operation, convenient and concise.

 请输入正文

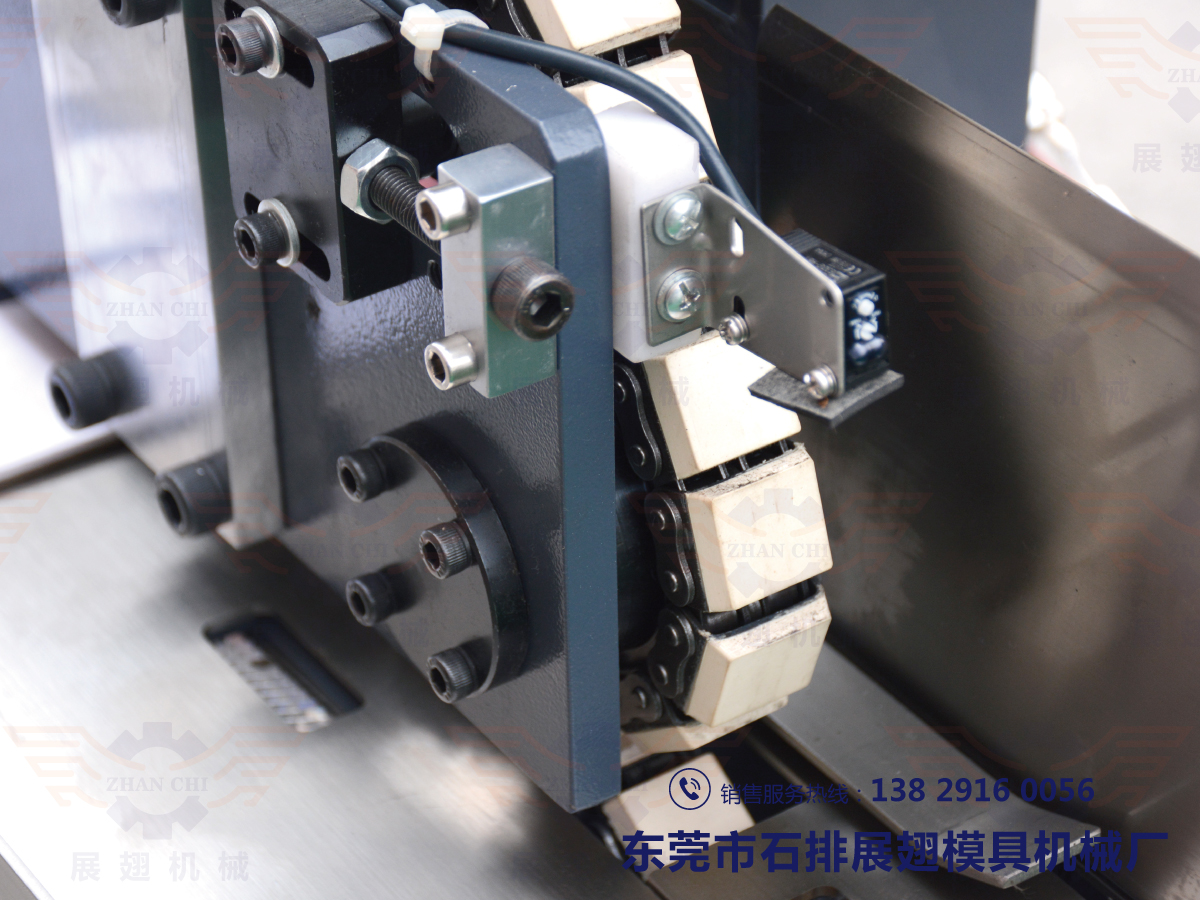

电眼监测续本,自动无料停机。

Eye monitoring sequel, automatic unexpected shutdown.
